Cooled MWIR

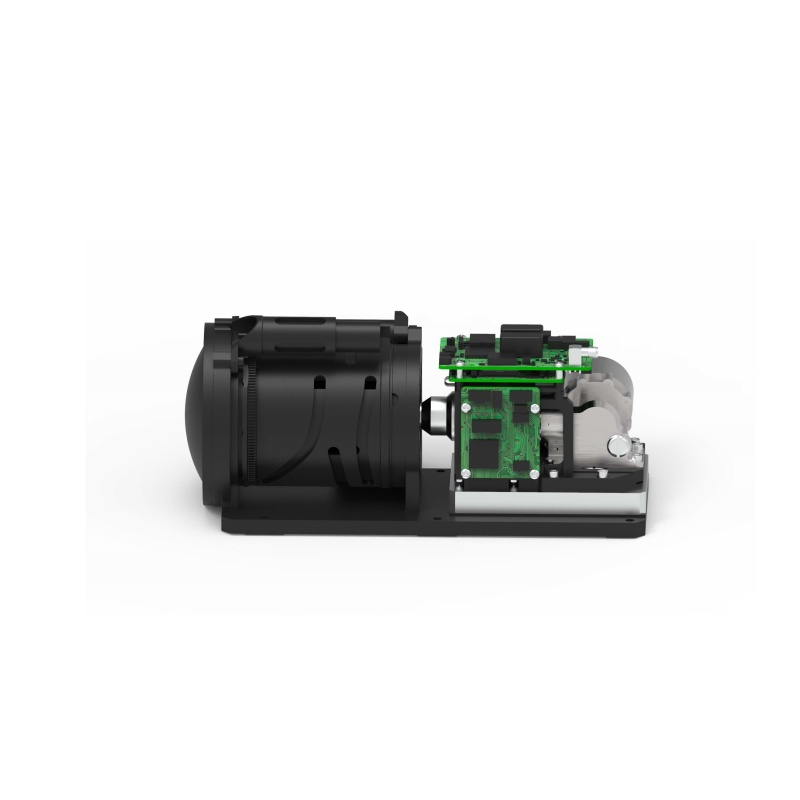

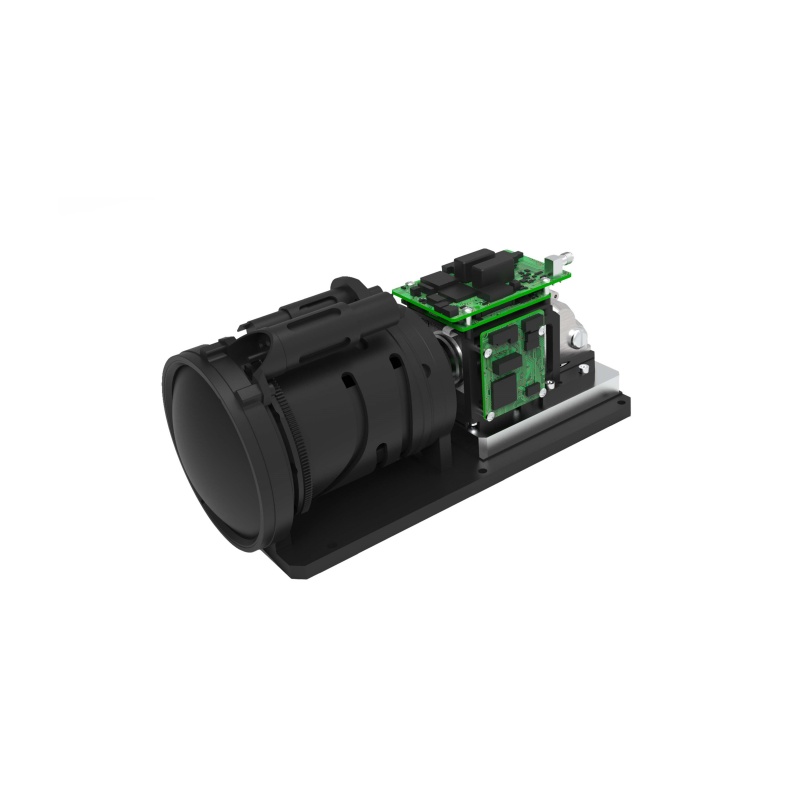

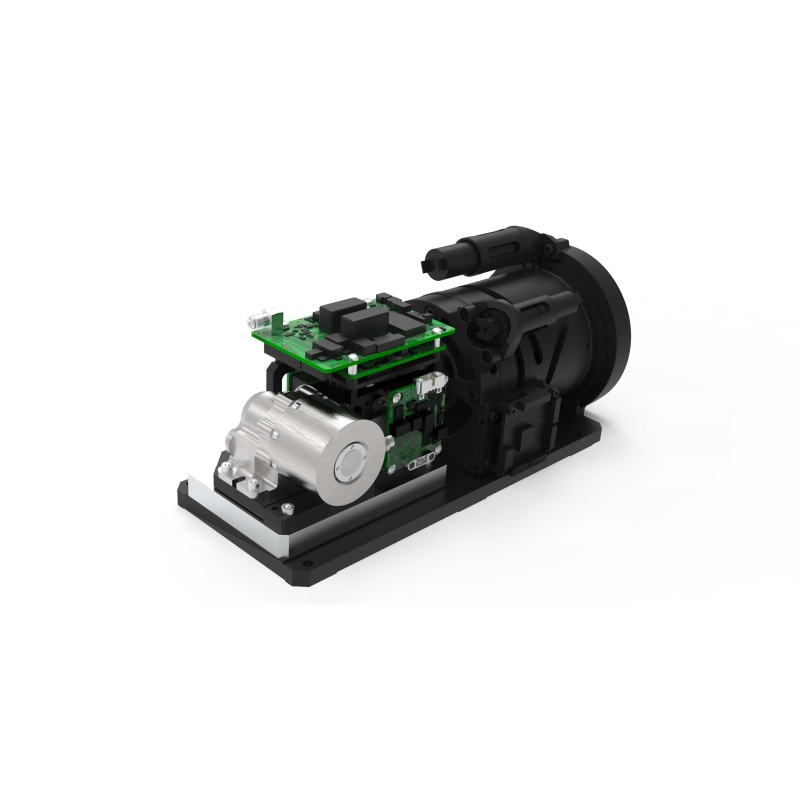

640 Cooled Mid-wave Infrared Imaging Module
Model: ZHUYING M06
Mid-wave IR (MWIR): 3–5 μm
640×512 cooled MWIR module. AVT / SDI / CameraLink. RS422/CAN. DC 28V, 240×115×110mm. Ideal for compact cooled MWIR payloads.

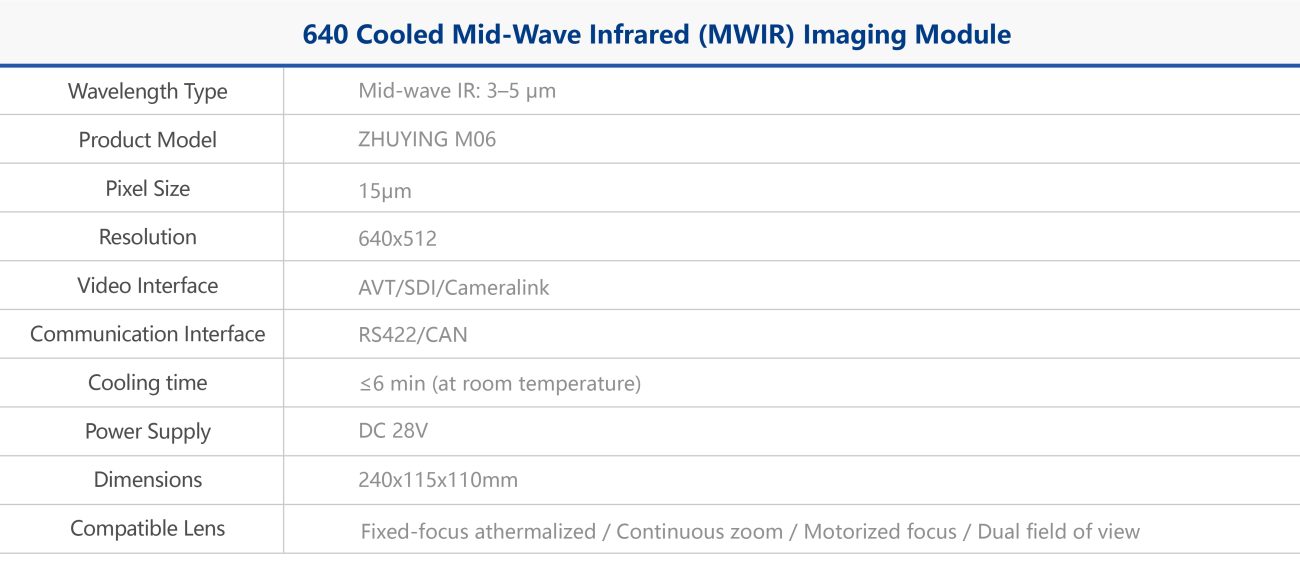

| Spectral Band | Mid-wave IR (MWIR): 3–5 μm |
| Resolution | 640×512 |
| Pixel Size | 15 μm |
| Video Interface | AVT / SDI / CameraLink |
| Communication Interface | RS422 / CAN |
| Cooling Time | ≤6 min (at room temperature) |
| Power Supply | DC 28V |
| Dimensions | 240×115×110 mm |
| Compatible Lenses | Fixed-focus athermalized, Continuous zoom, Motorized focus, Dual FOV |
The ZHUYING M06 is a 640×512 cooled MWIR imaging module offering triple-interface flexibility (AVT, SDI, CameraLink) and dual communication protocol support (RS422 and CAN). The 15 μm pixel pitch detector provides excellent sensitivity for target detection and identification at moderate range.
Key Features
- 640×512 MWIR detector at 15 μm pixel pitch with high NETD sensitivity
- Three video interface options — AVT, SDI, or CameraLink
- Dual comms — RS422 and CAN for flexible platform integration
- Proven in demanding environments — designed for military-grade applications
Typical Applications
Man-portable EO/IR systems, missile seeker integration studies, vehicle-mounted short-range surveillance, UAV reconnaissance pods, and scientific MWIR instrumentation.
