Cooled MWIR

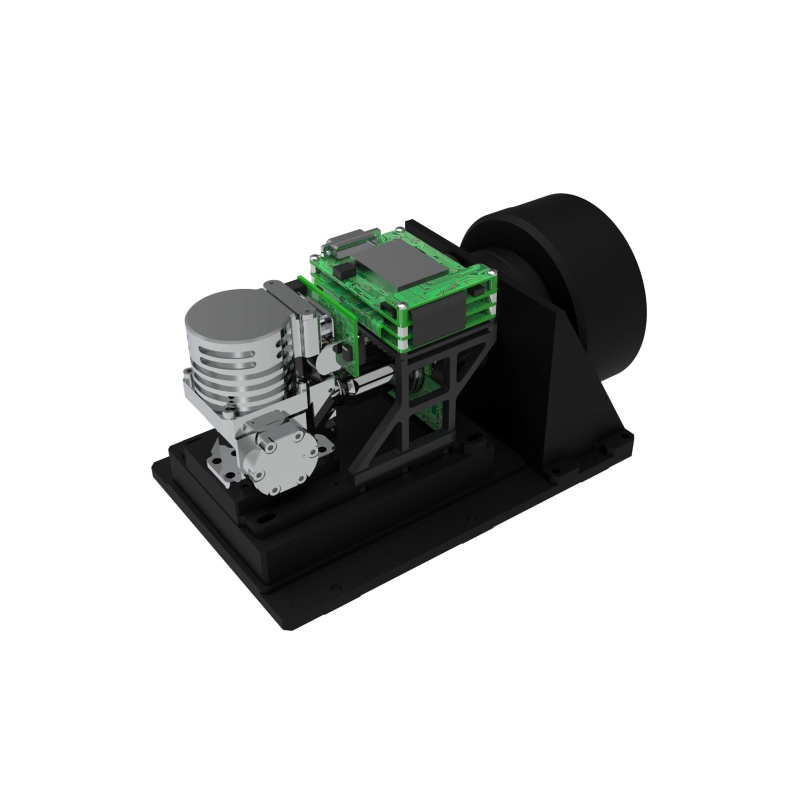

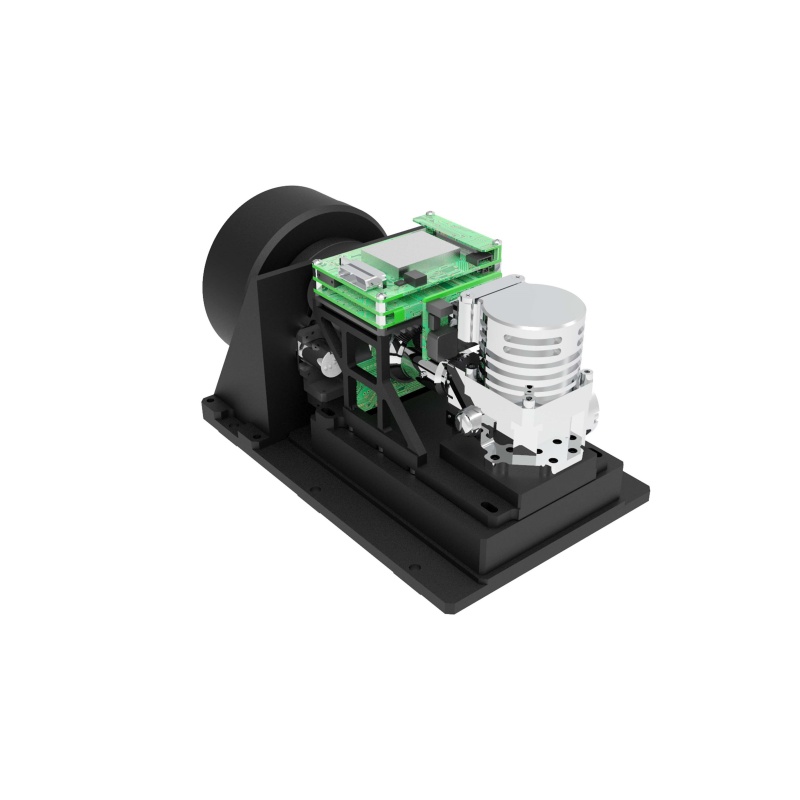

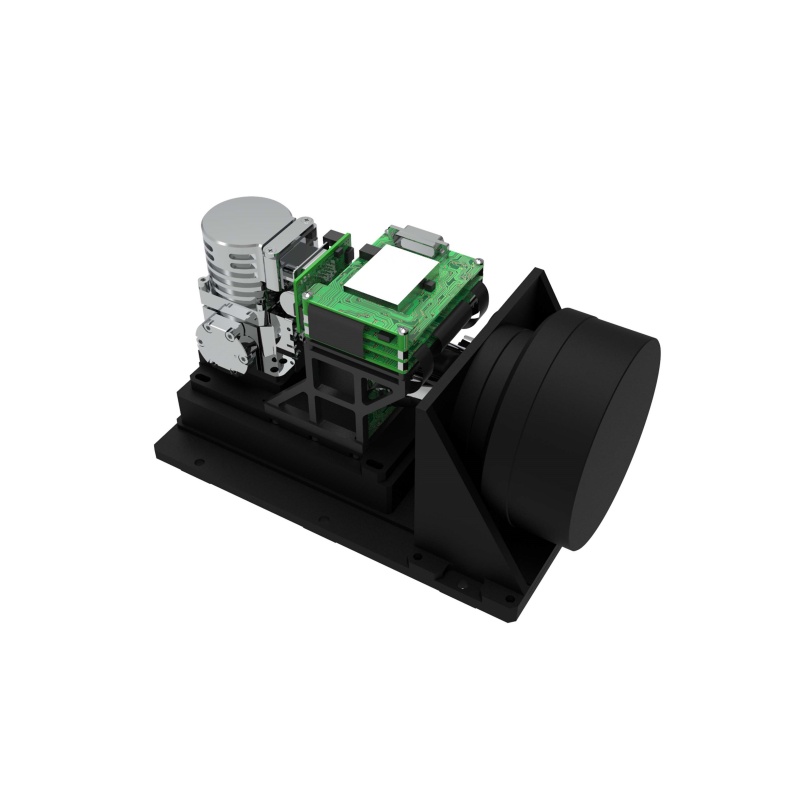

1280 Cooled Mid-wave Infrared Imaging Module
Model: ZHUYING M12
Mid-wave IR (MWIR): 3–5 μm
1280×1024 cooled MWIR module. No overexposure in daylight. Optical Module / SDI / CameraLink interface. DC 24V, 168×68×105mm.
| Spectral Band | Mid-wave IR (MWIR): 3–5 μm |
| Resolution | 1280×1024 |
| Pixel Size | 10 μm / 15 μm |
| Video Interface | Optical Module / SDI / CameraLink |
| Communication Interface | CAN |
| Cooling Time | ≤6 min (at room temperature) |
| Power Supply | DC 24V |
| Dimensions | 168×68×105 mm |
| Compatible Lenses | Fixed-focus athermalized, Continuous zoom, Motorized focus, Dual FOV |
The ZHUYING M12 delivers 1280×1024 cooled mid-wave infrared imaging with choice of 10 μm or 15 μm pixel pitch detectors and three video output interface options: Optical Module, SDI, and CameraLink. CAN bus communication enables reliable integration into vehicle and platform networks.
Key Features
- Highest resolution cooled MWIR — 1280×1024 at 10 or 15 μm pixel pitch
- Three interface options — Optical Module, SDI, or CameraLink to suit your system architecture
- CAN communication — rugged, noise-tolerant protocol for vehicle system integration
- Compact form factor — 168×68×105 mm for integration into mid-sized EO/IR turrets and gimbals
Typical Applications
Long-range reconnaissance systems, fire control imaging, airborne EO/IR turrets, border surveillance towers, and naval deck-mounted EO systems.
