640 Polarized Long-wave Infrared Imaging Module
640×512 polarimetric LWIR module at 7μm pixel pitch. Detects camouflaged targets and discriminates materials by polarization signature. CameraLink, 45×45mm.

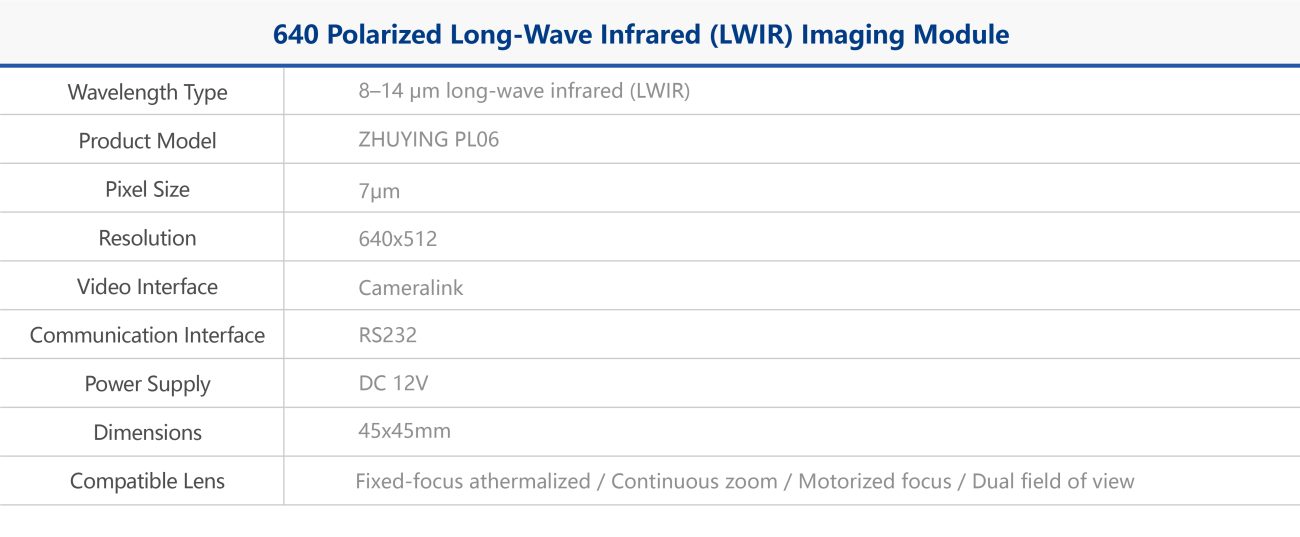

| Spectral Band | Polarized Long-wave IR (LWIR): 8–14 μm |
| Resolution | 640×512 |
| Pixel Size | 7 μm |
| Video Interface | CameraLink |
| Communication Interface | RS232 |
| Power Supply | DC 12V |
| Dimensions | 45×45 mm |
| Compatible Lenses | Fixed-focus athermalized, Continuous zoom, Motorized focus, Dual FOV |
The ZHUYING PL06 is a specialized polarimetric long-wave infrared imaging module. Unlike conventional thermal cameras that measure only emission intensity, the PL06 measures the polarization state of thermal radiation — providing a unique discrimination channel for camouflage defeat, material identification, and surface characterization.
How Polarimetric LWIR Works
Man-made surfaces emit thermally polarized radiation due to their smooth, uniform geometry. Natural backgrounds (soil, vegetation, rock) emit predominantly unpolarized radiation. The PL06 exploits this contrast to reveal man-made objects that may be thermally invisible in conventional LWIR imagery.
Key Features
- 7 μm pixel pitch — highest spatial sampling in the product range
- Polarimetric discrimination — reveals camouflaged targets against natural backgrounds
- 45×45 mm compact format — adaptable to research instruments and specialized payloads
- CameraLink interface — industry-standard for scientific and industrial imaging
Typical Applications
Camouflage defeat systems, material science research, industrial surface inspection, environmental science, and specialized reconnaissance payloads.
