Visible Light
Modular Visible Light Imaging Module
Model: ZHUYING V19A
Visible Light: 0.4–0.9 μm
1920×1080 visible light module with POE interface. Hisilicon platform, rolling shutter. RS232/RS422. DC 48V, 168×68×105mm.

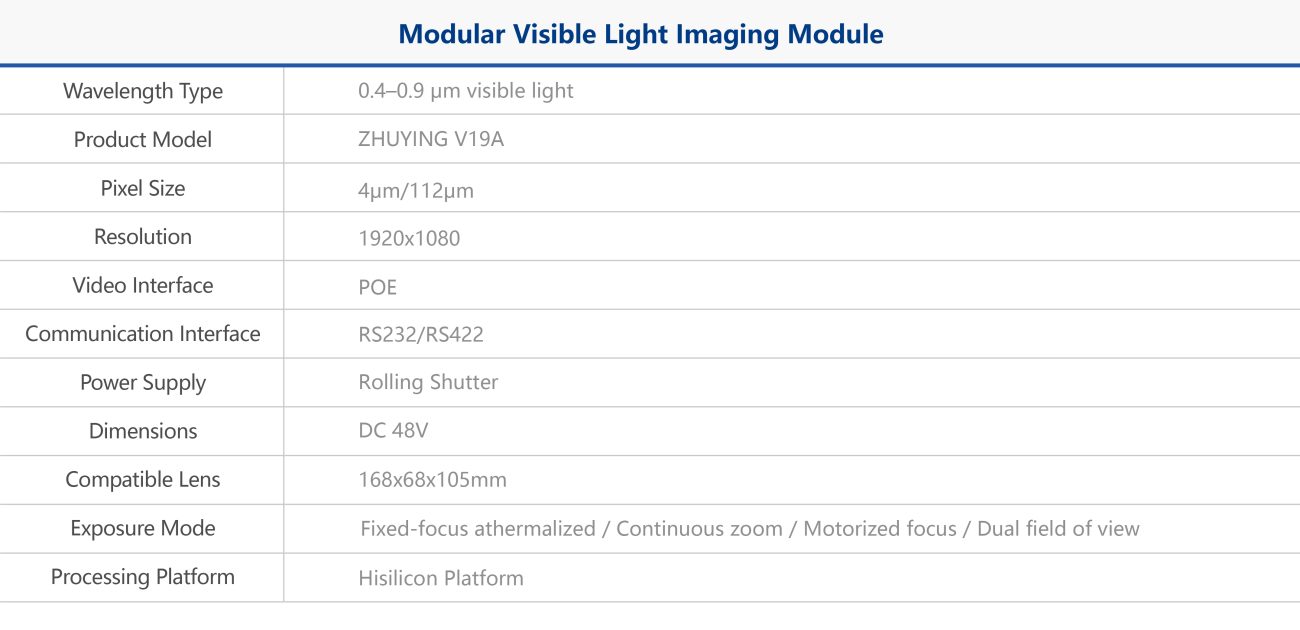

| Spectral Band | Visible Light: 0.4–0.9 μm |
| Resolution | 1920×1080 (Full HD) |
| Pixel Size | 4 μm / 112 μm |
| Video Interface | POE (Power over Ethernet) |
| Communication Interface | RS232 / RS422 |
| Shutter | Rolling Shutter |
| Processing Platform | Hisilicon |
| Power Supply | DC 48V (PoE) |
| Dimensions | 168×68×105 mm |
| Compatible Lenses | Fixed-focus athermalized, Continuous zoom, Motorized focus, Dual FOV |
The ZHUYING V19A is a full HD modular visible light imaging module built on the Hisilicon platform with POE (Power over Ethernet) connectivity. The POE interface simplifies installation by combining power and data over a single cable — ideal for fixed surveillance installations and remote-mounted EO/IR payloads.
Key Features
- 1920×1080 Full HD visible light imaging at 4 μm pixel pitch
- POE interface — single cable for power and gigabit video data
- Hisilicon platform — proven SoC with extensive IPC ecosystem support
- RS232/RS422 for pan-tilt-zoom and gimbal control
- Rolling shutter optimized for stationary and slow-moving scenes
Typical Applications
Fixed-site EO/IR turret visible channel, IP camera core, multi-sensor surveillance system visible component, and traffic monitoring cameras.
