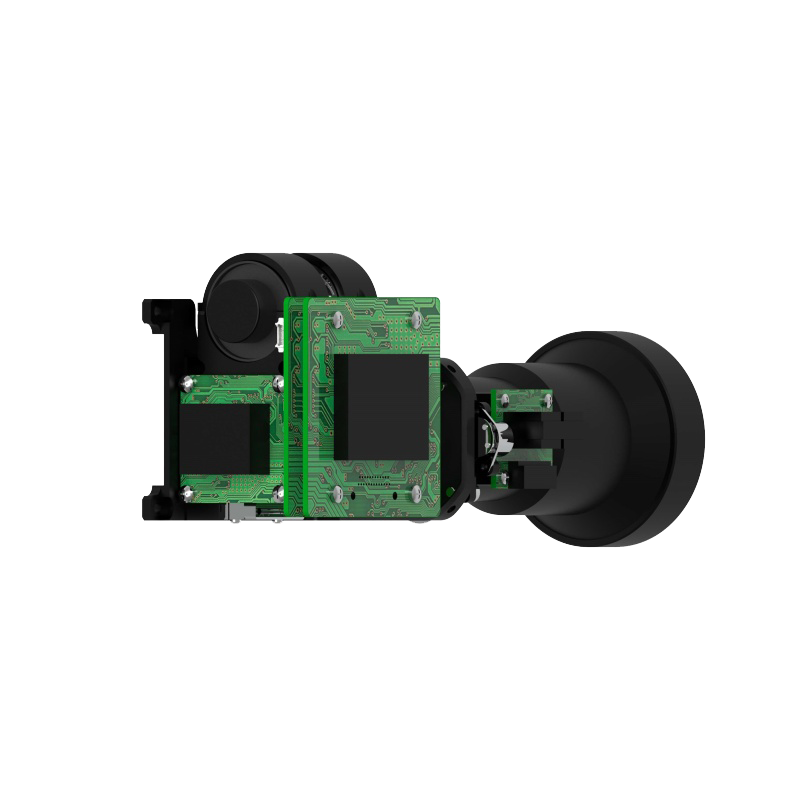

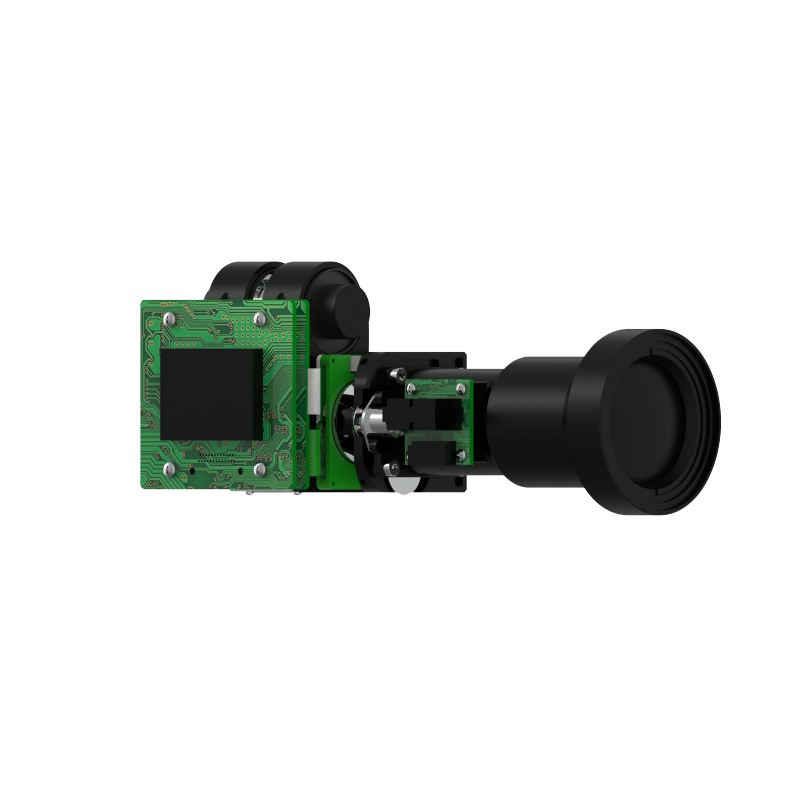

A 10 μm, 1024×768 HOT cooled MWIR imaging module with a 144 mm athermalized lens, Camera Link output, ≤40 mK NETD, and compact 200×77×62 mm packaging.
Engineering profile
The standard specification uses Camera Link video and RS422 command control. The 144 mm optical assembly is focused from 200 m to infinity. Environmental qualification targets continuous operation of at least eight hours and a design service life of at least ten years.
Key capabilities
- Detector: HOT cooled MWIR
- Resolution: 1024×768 @ 25±0.5 Hz
- Pixel pitch: 10 μm
- Spectral band: 3.7±0.2–4.8±0.2 μm
- Thermal sensitivity: NETD ≤40 mK
- Lens configuration: 144 mm athermalized, F/3.0
- Field of view: ≥4°×3°; distortion ≤3%
- Video output: Camera Link
Image processing and control
White-hot and black-hot polarity, manual or automatic gain/contrast/brightness, edge enhancement, shutter or background non-uniformity correction, crosshair overlay, state retention, self-test, and 2× electronic zoom are available through serial control.
Integration notes
Specifications reflect the supplied technical document. Lens, connector, mechanical, and environmental options may be finalized for the target program.
Typical applications
Long-range EO/IR observation, stabilized turrets, border and coastal monitoring, vehicle sights, and airborne ISR payloads.
