Multi-spectral imaging modules from IRmodules support a range of scientific research and instrumentation applications — from gas spectroscopy to material science, from medical thermography to precision thermal measurement.

Detailed view of a laboratory microscope used for scientific research and analysis
Precision optical instrumentation increasingly integrates multi-spectral imaging capabilities for material characterization and analysis

Different research applications require different spectral bands. SWIR (0.9–1.7 μm) excels at gas absorption spectroscopy and material sorting. MWIR (3–5 μm) provides precision radiometric temperature measurement and is sensitive to gas emissions at elevated temperatures. Polarimetric LWIR adds a material discrimination dimension unavailable in conventional thermal imaging.

Typical Deployments

  • Atmospheric gas analysis: SWIR absorption spectroscopy for non-contact measurement of CO₂, CH₄, and H₂O vapor concentrations
  • Material characterization: polarimetric LWIR discriminating materials with similar thermal signatures but different surface properties — semiconductor, composite, and surface-science research
  • Thermal metrology: cooled MWIR modules with precise radiometric calibration for temperature-measurement research
  • Wildlife & ecology: nocturnal animal behavior studies — body heat detected through foliage that hides animals from visible cameras
  • Medical thermography research: whole-body or regional thermal imaging for inflammatory and vascular studies

What the Camera Sees: Lab Examples

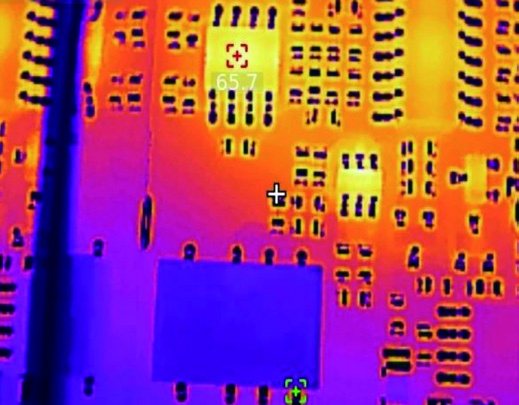

Thermal image of a powered circuit board
Powered PCB under test — every pixel is a temperature channel, turning board-level thermal validation into a single recording

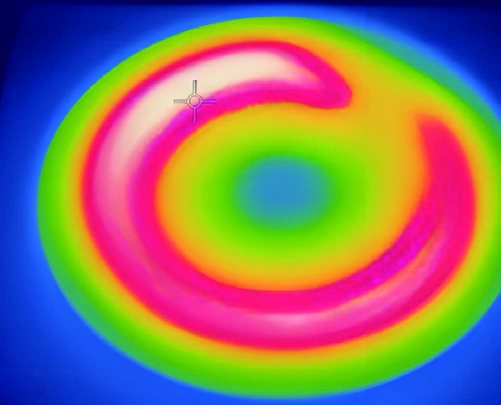

Thermal image of a heated ring sample showing heat distribution
Material studies — heat-flow patterns through samples reveal structure, anisotropy, and defects
Researchers working in a laboratory
One radiometric core serves many experiments — electronics this month, materials the next

Module Selection Guide

Scenario Module Key figures
Gas & material spectroscopy SPECTRA S06A (SWIR) 0.4–1.7 μm InGaAs, TEC-cooled stability
Material & surface discrimination SPECTRA PL06A Polarimetric LWIR, polarization + intensity
Precision thermal metrology SPECTRA M06A (cooled 640×512) NETD 16 mK, radiometric
High-resolution MWIR research SPECTRA H10A (1024×768) 10 μm pitch, ≤0.8 kg with lens
