1024×768 HOT Cooled MWIR Module
MWIR 3.7±0.2–4.8±0.2 μm
A 10 μm, 1024×768 HOT cooled MWIR imaging module with a 144 mm athermalized lens, Camera Link output, ≤40 mK NETD, and compact 200×77×62 mm packaging.
A 10 μm, 1024×768 HOT cooled MWIR imaging module with a 144 mm athermalized lens, Camera Link output, ≤40 mK NETD, and compact 200×77×62 mm packaging.
| Detector | HOT cooled MWIR |
| Resolution | 1024×768 |
| Pixel pitch | 10 μm |
| Spectral band | 3.7±0.2–4.8±0.2 μm |
| Thermal sensitivity | NETD ≤40 mK |
| Lens configuration | 144 mm athermalized, F/3.0 |
| Field of view | ≥4°×3°; distortion ≤3% |
| Focus range | 200 m to infinity |
| Defective pixels | ≤0.5%, no clusters in central area |
| Video output | Camera Link |
| Control interface | RS422 |
| Frame rate | 25 ±0.5 fps |
| Recognition range | ≥5 km (standard vehicle target) |
| Image processing | NUC, white/black-hot, AGC, edge enhancement, crosshair, 2× digital zoom |
| Optical-axis stability | ≤0.1 mrad |
| Power supply | DC 18–32 V |
| Power consumption | Average <12 W; start-up <22 W |
| Start-up / readiness | ≤3 min typical; ≤6 min full temperature range |
| Dimensions | ≤200×77×62 mm |
| Weight | ≤0.8 kg |
| Operating temperature | −40 to +60 °C |
| Storage temperature | −50 to +70 °C |
| Continuous operation | ≥8 h |
| MTBF | ≥1200 h (mature stage) |
| Service life | ≥10 years |
| Protection | Over-current & reverse-polarity |
Specifications reflect the supplied technical document. Lens, connector, mechanical, and environmental options may be finalized for the target program.
1280×1024, 10μm HgCdTe (MCT) cooled MWIR infrared module, F4.0 aperture, NETD ≤40mK, 25Hz frame rate, default F4 30~150mm continuous-zoom lens; provides SDI / CameraLink / MIPI interface configurations and RS422 control.
640×512 cooled MWIR module built on a 15 μm detector and RS058 cryocooler, NETD down to 16 mK. Pictured configuration ships with a 15–300 mm / F5.5 continuous-zoom lens; CameraLink with RAW/YUV output, further zoom options up to 32–730 mm / F4.
See the module and related imaging technology in real field footage.
Outdoor footage from a 640×512 thermal camera fitted with a 35 mm lens, focused on image clarity, field of view, and target presentation.
Watch Video
Multiple 640-channel thermal views are stitched into a 270-degree panorama for wide-area observation and continuous scene awareness.
Watch Video

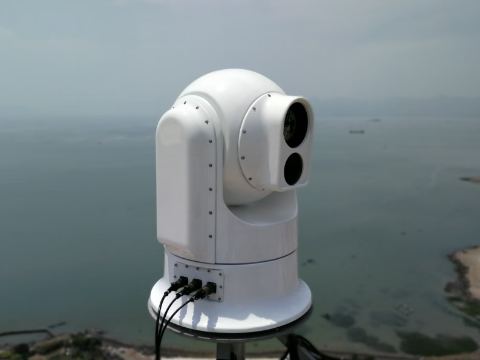

Long-range Surveillance
Explore border & perimeter security applications

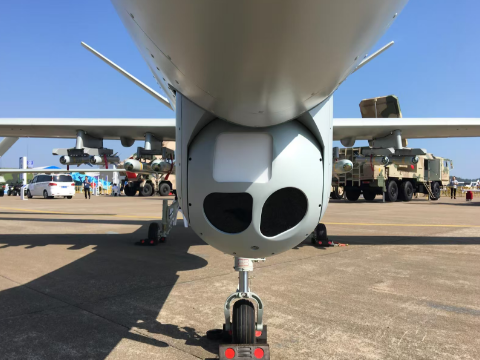

Aerospace
Explore aerospace & airborne EO/IR payloads

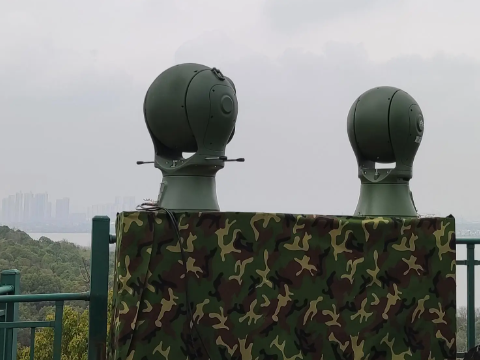

Integrated EO/IR Systems
Explore integrated security system solutions
Environmental Protection
Explore agriculture & environment applications

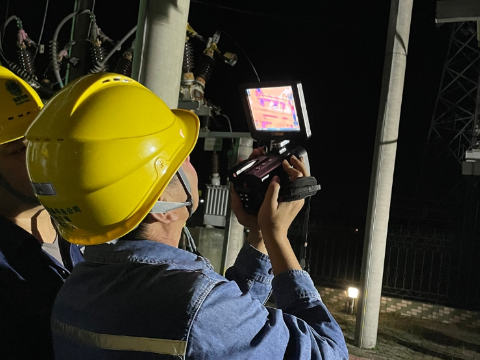

Gas Leak Detection
Explore gas leak detection applications

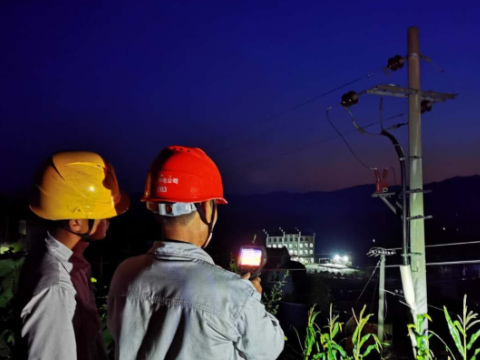

Industrial Process Monitoring
