SPECTRA L12E 1280×1024 Uncooled LWIR Network Module with 50 mm F1.0 Lens
Long-wave IR (LWIR): 8–14 μm
SPECTRA L12E is a 1280×1024/12 μm uncooled LWIR network thermal imaging module with a 50 mm F1.0 athermalized fixed lens and 17.5°×14.0° FOV, delivering RTSP video over Gigabit Ethernet and RS485 Modbus RTU for long-range surveillance, perimeter protection and fire detection.
SPECTRA L12E is a high-resolution telephoto network thermal imaging module built around a 1280×1024/12 μm uncooled VOx detector and a 50 mm F1.0 athermalized fixed lens with a nominal 17.5°×14.0° field of view. The module provides one RTSP network video stream over adaptive 10/100/1000M Ethernet with H.264/H.265/MJPEG encoding and ONVIF / GB/T 28181 support, while an RS485 port running Modbus RTU connects directly to industrial control systems. With NETD ≤30 mK, −40 ~ +70 °C operation and typical power consumption below 4 W, it is designed for long-range surveillance, perimeter protection, fire detection and target observation.
| Detector | VOx uncooled focal plane array |
| Resolution | 1280×1024 |
| Pixel pitch | 12 μm |
| Spectral range | 8–14 μm |
| NETD | ≤30 mK (F1.0, 25 °C ambient) |
| Frame rate | 25/50 Hz (per delivery firmware) |
| Start-up time | ≤8 s |
| Lens type | Fixed focus, athermalized design |
| Focal length / aperture | 50 mm F1.0 |
| Nominal FOV | 17.5°×14.0° (H×V) |
| Front element coating | HD coating |
| Front protection | IP67 |
| Max lens diameter | Ø55 mm |
| Detection / Recognition / Identification (est.) | 3540 m / 1180 m / 590 m (est.) |
| Video format | YUV |
| Image processing | NUC / 3DNR / DNS / DRC / EE |
| Palettes | 10 (white hot, black hot, lava, iron red, medical, arctic, rainbow, etc.) |
| Network video output | 1× Ethernet RTSP |
| Ethernet | 10/100/1000M adaptive, via network interface assembly |
| Main stream | 1280×1024 or 1024×768 (per delivery firmware) |
| Sub stream | 1024×768, 640×512 or 320×256 (per delivery firmware) |
| Video encoding | H.264 / H.265 / MJPEG |
| Protocols | TCP/IP, UDP, HTTP, RTSP, DHCP, DNS, ONVIF, GB/T 28181 |
| Serial interface | RS485 A/B, via network interface assembly |
| Application protocol | Modbus RTU |
| Extended I/O | USB, CVBS, audio in/out, alarm inputs/outputs, 3.3 V UART, speaker (via network interface assembly) |
| Main power input | DC 12 V nominal |
| Input range | 9–24 V |
| Typical power | <4 W |
| Operating temperature | −40 ~ +70 °C |
| Storage temperature | −45 ~ +85 °C |
| Humidity | 5%–95% RH, non-condensing |
| Shock | Half-sine 30 g / 11 ms, six directions |
| Vibration | 10–150–10 Hz, 0.15 mm peak |
| Compliance | RoHS 2.0 / REACH |

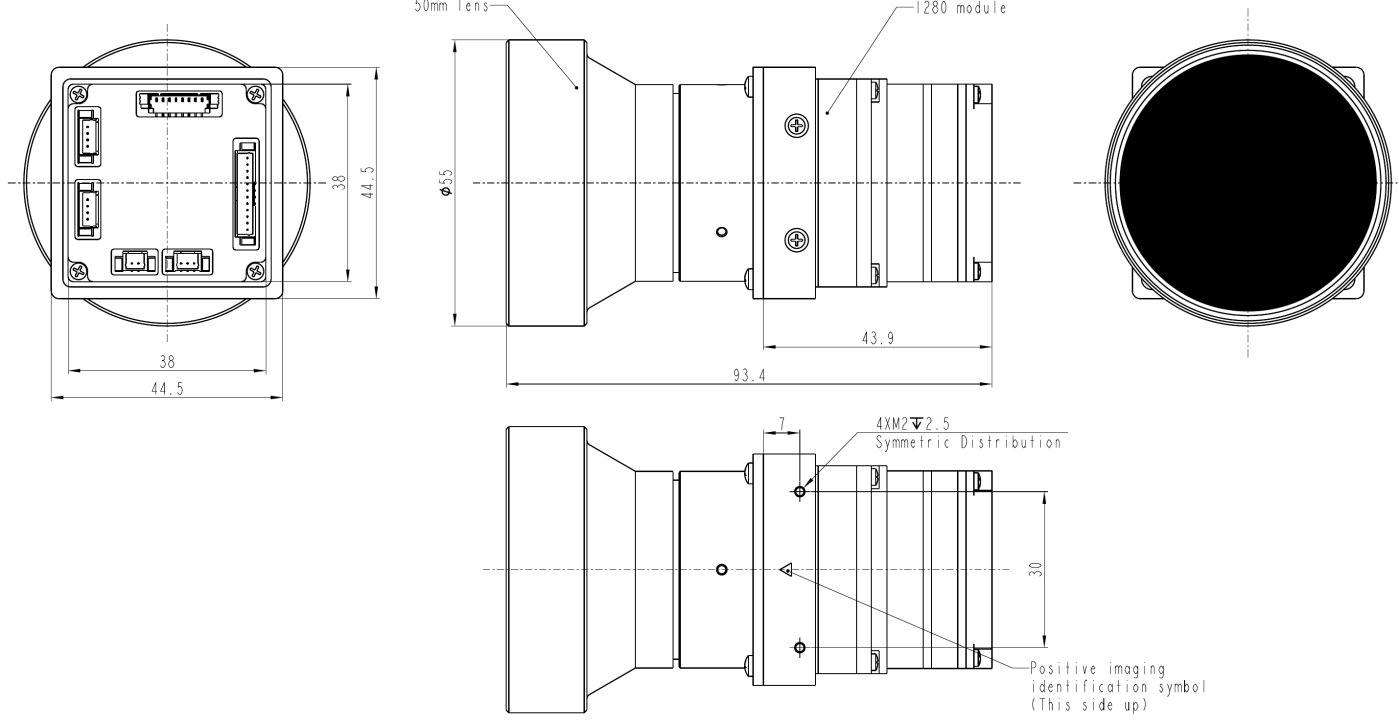

| End face | 44.5 mm × 44.5 mm |
| Body cross-section | 38 mm × 38 mm |
| Overall length | 93.4 mm |
| Rear body length | 43.9 mm |
| Mounting holes | 4 × M2, 2.5 mm deep, symmetric |
| Hole spacing | 30 mm |
Specifications subject to change without notice. D/R/I: estimated detection / recognition / identification ranges (m), Johnson criteria (50% probability, 1.7 m × 0.5 m target). Stream and frame-rate configurations follow the delivery firmware. Actual performance varies with scene and target.
