384×288 Ultra-Compact Uncooled LWIR Module
Long-wave IR (LWIR): 8–14 μm
Spectra L04U is an ultra-compact infrared module built around a 384×288-resolution infrared detector with a choice of optical lenses, an image processing board and a high-load-bearing mechanical structure.
Spectra L04U is an ultra-compact infrared module built around a 384×288-resolution infrared detector with a choice of optical lenses, an image processing board and a high-load-bearing mechanical structure. Video is delivered via analog or digital interfaces for integration into back-end platforms, and the larger array thermal output serves a wide range of customer applications.
| Material | Uncooled VOx |
| Array Format | 384×288 |
| Pixel Size | 12µm |
| NETD | ≤30mK/F1.0/25℃ |
| Spectral Band | 8～14μm |
| Focal Length / F# | 4.8/F1.0 |
| Field of View | 51°(H)×39°(V) |
| Type | Athermal fixed-focus |
| Window Sealing / Coating | IP67 |
| DRI (est.) | 340/110/57 m |
| Analog Video | PAL (default) / NTSC |
| Digital Video | USB/MIPI |
| Frame Rate | 25Hz/30Hz/50Hz |
| Boot-up Time | ≤6s |
| Image Algorithms | NUC/DRC/DNS/DDE/SFFC |
| Color Palettes | 11, custom palettes supported |
| Standard Connector | 3-pin (A1251-WV-S-3P) |
| Video Interface | CVBS |
| Supply Range | DC:5V~24V |
| Steady-state Power | ≤680mW@5V，23±3℃ |
| Dimensions | 22.2 × 22.2 × 27.2 mm (L×W×H) |
| Weight | 30.3±2g |
| Operating Temp. | -40℃～+70℃ |
| Storage Temp. | -45℃～+85℃ |
| Humidity | 5%–95%, non-condensing |
| Vibration | Random vibration 5.35 grms, 3 axes |
| Shock | Half-sine 40 g / 11 ms, 3 axes 6 directions |
| Certification | RoHS 2.0 / REACH compliant |
Specifications subject to change without notice. D/R/I: estimated detection / recognition / identification range (m), Johnson criteria at 50% probability, standard human target 1.7 m × 0.5 m; actual range varies with scene and target.
SPECTRA L04C is an ultra-compact uncooled LWIR module with a 384×288/12 μm VOx detector, ≤23 g weight, CVBS/USB-UVC/BT.656 video, dual-range thermometry and 4.6–75 mm athermal lens options.
Spectra L04T is an infrared module built on our high-refresh-rate 12 μm WLP-packaged detector and the 2nd-generation in-house Asic-ISP image processor.
SPECTRA L06C is an ultra-compact uncooled LWIR module with a 640×512/12 μm VOx detector, ≤23 g weight, CVBS/USB-UVC/BT.656 video, dual-range thermometry and 4.6–75 mm athermal lens options.
See the module and related imaging technology in real field footage.
Outdoor footage from a 640×512 thermal camera fitted with a 35 mm lens, focused on image clarity, field of view, and target presentation.
Watch Video
Multiple 640-channel thermal views are stitched into a 270-degree panorama for wide-area observation and continuous scene awareness.
Watch Video

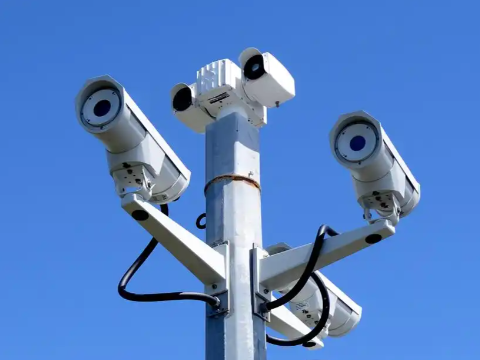

Security Monitoring
Explore border & perimeter security applications
Industrial Inspection
Explore industrial inspection & monitoring applications

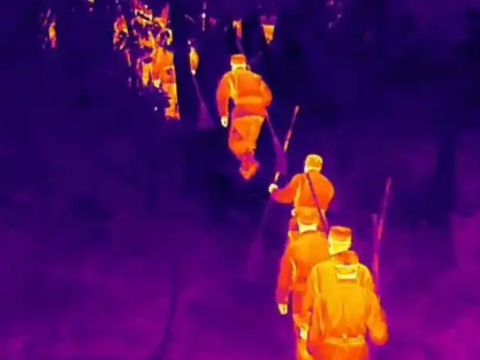

Firefighting & Rescue
Explore search & rescue applications

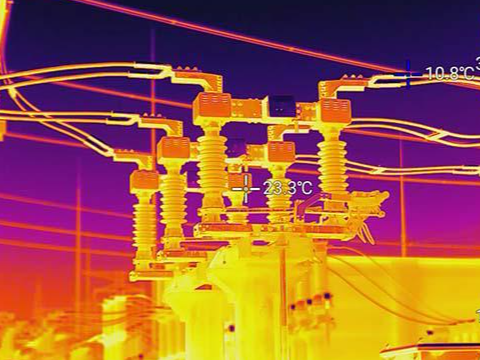

Power Line Inspection
