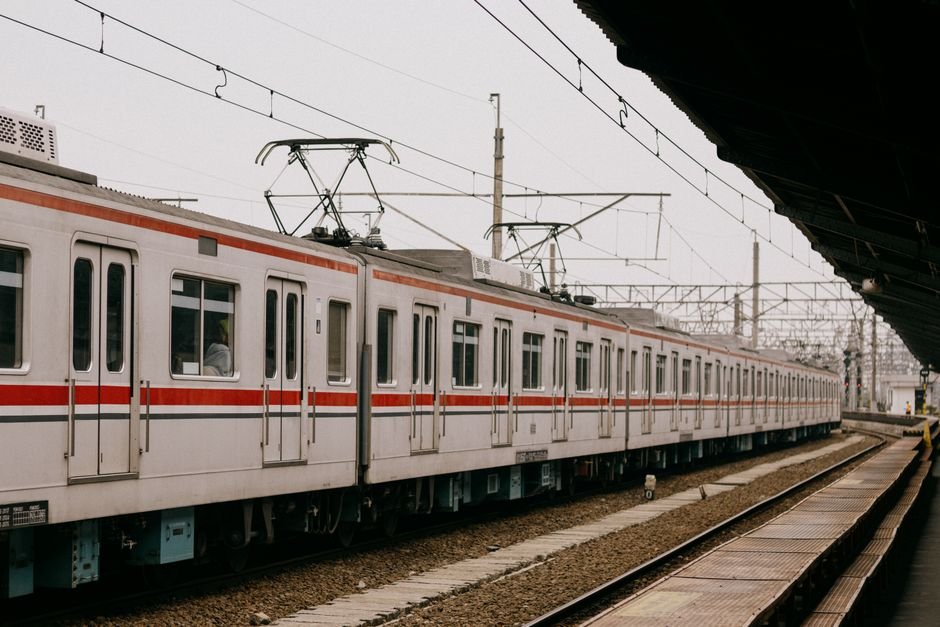

The pantograph-catenary interface is a metro system’s most stressed electrical contact: a sliding carbon strip pressing against a live contact wire at line speed, carrying hundreds of amps. When contact quality degrades — a worn strip, a misaligned wire, a hard spot — the first physical symptom is heat: abnormal warming of the contact zone, then arcing. Left alone, arcing destroys the strip and the wire, and the failure mode ends in a dewirement that strands trains.
This case looks at how a metro operator replaced a monthly manual inspection with continuous onboard thermal monitoring — and what continuous data changed.
Project Background
In 2023, the rolling-stock engineering department of a metro operator in East China — six lines, roughly 240 route-kilometers of overhead catenary — reviewed a year of catenary incidents. The inspection regime was the industry default: a dedicated inspection car running a monthly night possession, staff watching the contact zone with handheld thermal cameras and recording video for later review. Coverage was one pass per month per line, always in the small hours, and findings took days to reach the maintenance plan. Meanwhile, two arcing incidents that year had developed between inspections and burned through contact strips in service. The operator funded an onboard monitoring pilot: thermal-visible camera units on the roofs of two in-service trains, watching the pantograph contact point on every revenue run.
Pain Points of the Traditional Approach
- Monthly snapshots miss fast failures. A contact anomaly can develop from first warming to strip burn-through in two to three weeks — comfortably inside the gap between monthly inspections.
- Night possessions are scarce and expensive. Engineering hours between last and first train are the most contested resource in a metro; spending them on inspection crowds out actual maintenance.
- Handheld observation is inconsistent. Results depend on the operator’s aim, the inspection car’s speed, and whether anyone reviews the recorded video promptly; the same defect was graded differently by different teams.
- Findings arrive late. Video review and report routing meant days between detection and a work order — days in which the defect kept developing under full traffic.
The Thermal Imaging Solution
Each instrumented train carries a roof-mounted unit aimed at the pantograph contact point: a radiometric 640×512 LWIR core with a high frame rate option for sharp capture at line speed, paired with a visible camera. The thermal channel sees exactly what matters — the contact strip, the wire, and the arc itself, which is a brilliant thermal event no lighting condition can hide.
Analytics on the unit track the contact zone in every frame and flag anomalies in three classes: contact-point temperature above baseline for the location, thermal signatures of arcing, and geometric cues of strip wear. Each flag carries the frame, the temperature, the train position, and the pantograph ID, and lands in the maintenance system the same day. Because instrumented trains run normal service, every section of catenary is observed many times a week — and trends, not just snapshots, become visible: a location whose contact temperature creeps up over ten days is scheduled before it ever arcs.
What the Thermal Solution Changed
- Detection lead time stretched from days to weeks. In the first six months, eleven developing contact anomalies were caught at the warming stage — all repaired in planned windows; the previous year, comparable faults surfaced as arcing events.
- Night possessions went back to maintenance. The monthly inspection run on the two pilot lines was cancelled, returning dozens of engineering hours per month to repair work.
- Every run is an inspection. Coverage moved from one pass per line per month to hundreds of passes, and from sampled locations to complete coverage at line speed.
- Consistent, graded findings. Automated grading replaced operator judgment calls; maintenance planners now receive comparable, prioritized data instead of video to review.
Module Selection Notes
Onboard pantograph monitoring needs a radiometric LWIR core with enough frame rate to freeze the contact point at line speed, enough pixels to resolve the strip-and-wire contact zone at roof mounting distance, and a digital interface edge analytics can consume directly. The SPECTRA L06T2 640×512 LWIR core is the workhorse for this duty; pair it with a visible module such as the SPECTRA V19A for synchronized visible context. See the rail transit application page for onboard and wayside patterns.
