640×512 Uncooled LWIR Module
Long-wave IR (LWIR): 8–14 μm
640×512/12 μm uncooled infrared sensor + professional imaging readout circuitry + proprietary image processing algorithms = Spectra L06P.
640×512/12 μm uncooled infrared sensor + professional imaging readout circuitry + proprietary image processing algorithms = Spectra L06P. The highly reliable infrared detector collects more target information, while the professional hardware platform and image algorithms ensure clear imaging. A wide range of industry-standard interfaces and the full lens lineup comprehensively meet your individual night-vision observation needs.
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Spectral Band | 8~14μm |
| Typical NETD | <40mk |
| Frame Rate | 9Hz/25Hz/30Hz/50Hz |
| Boot-up Time | 10 s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV/BT656/LVDS |
| Expansion Modules | USB/VPC/Cameralink/Gig-E |
| AGC | Linear / histogram / hybrid |
| Digital Zoom | 1–8× stepless zoom, step 1/8 |
| Image Display | Black-hot / white-hot / pseudo-color |
| Image Orientation | Horizontal / vertical / diagonal flip |
| Image Algorithms | NUC, adaptive AGC, intelligent image enhancement (IDE) |
| Standard Connector | 50-pin HRS |
| Communication | RS232-TTL, 115200bps |
| Operating Voltage Range | 4~6V |
| Typical Power | 1.4W |
| Dimensions (mm) | 44.5×44.5×36.6 |
| Weight | 85g±3g |
| Operating Temp. | -40°C ~ +70°C |
| Storage Temp. | -45°C ~ +85°C |
| Humidity | 5%–95%, non-condensing |
| Vibration | Random vibration 5.35 grms, 3 axes |
| Shock | Half-sine 40 g / 11 ms, 3 axes 6 directions |
| 13 mm fixed | FOV 32.9°×26.6° · IFOV 0.92 mrad DRI (est.) 920/310/150 m |
| 19 mm fixed | FOV 22.9°×18.4° · IFOV 0.63 mrad DRI (est.) 1300/450/220 m |
| 24 mm fixed | FOV 18.2°×14.6° · IFOV 0.5 mrad DRI (est.) 1700/570/280 m |
Specifications subject to change without notice. D/R/I: estimated detection / recognition / identification range (m), Johnson criteria at 50% probability, standard human target 1.7 m × 0.5 m; actual range varies with scene and target.
Spectra L06NT is a high-accuracy infrared module for general IP networks.
Spectra L06T2 is an infrared module built on our high-refresh-rate 12 μm WLP-packaged detector and the 2nd-generation in-house Asic-ISP image processor.
A 640×512, 12 μm uncooled LWIR module shown with the 25 mm F1.0 fixed-focus athermalized lens — 50 Hz imaging, SDI/MIPI video output, RS422 control, and a 9.1–75 mm fixed-lens series.
See the module and related imaging technology in real field footage.
Outdoor footage from a 640×512 thermal camera fitted with a 35 mm lens, focused on image clarity, field of view, and target presentation.
Watch Video
Multiple 640-channel thermal views are stitched into a 270-degree panorama for wide-area observation and continuous scene awareness.
Watch Video

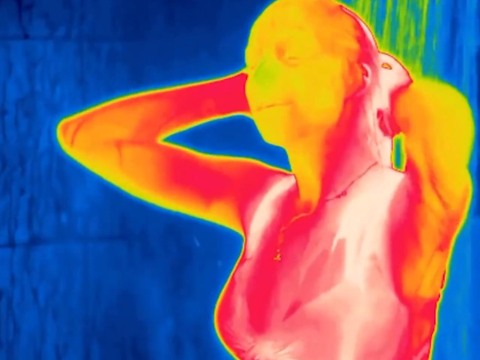

Thermometry Inspection
Explore power & energy inspection applications
Security Monitoring
Explore border & perimeter security applications
Night Vision Observation
Explore search & rescue applications

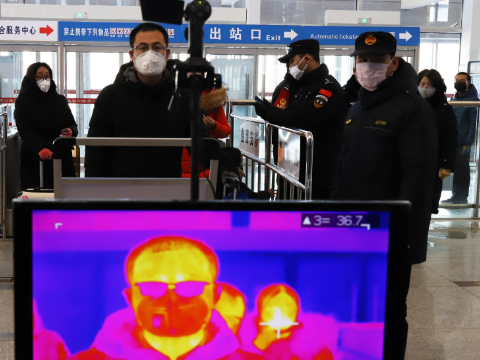

Epidemic Prevention Healthcare
