SPECTRA L06A 640×512 Uncooled LWIR Module
LWIR 8–12 μm
A 640×512, 12 μm uncooled LWIR module shown with the 25 mm F1.0 fixed-focus athermalized lens — 50 Hz imaging, SDI/MIPI video output, RS422 control, and a 9.1–75 mm fixed-lens series.
A 640×512, 12 μm uncooled LWIR module shown with the 25 mm F1.0 fixed-focus athermalized lens — 50 Hz imaging, SDI/MIPI video output, RS422 control, and a 9.1–75 mm fixed-lens series.
| Detector | VOx Uncooled LWIR |
| Resolution | 640×512 |
| Pixel pitch | 12 μm |
| Spectral band | 8–12 μm |
| Thermal sensitivity | NETD ≤45 mK @ 25 °C |
| Frame rate | 50 Hz |
| Lens type | Fixed focus, athermalized |
| Fixed-lens series | 9.1 / 13.5 / 19 / 25 / 35 / 55 / 75 mm; 25 mm F1.0 shown (FOV 17.5°×11.7° est.) |
| Video output | SDI (latency ≤20 ms); MIPI (2-lane + 4-lane) |
| Control interface | RS422, 115200 bps |
| Optional interfaces | DVP, CVBS, USB, Ethernet and other common ports on request |
| Power supply | DC 5.0–5.5 V |
| Power consumption | ≤6 W (peak <12 W) |
| Dimensions | 46×40×71.93 mm (25 mm configuration) |
| Weight | ≤300 g (25 mm configuration) |
| Operating temperature | −40 to +60 °C |
| Storage temperature | −40 to +70 °C |
| Ingress protection | IP67 (optical head) |
Specifications reflect the 25 mm configuration technical document. Focal lengths, video interfaces, and connector options can be finalized for the target program.
A 1280×1024, 12 μm uncooled LWIR module shown with the 45 mm F1.0 fixed-focus athermalized lens — 25 Hz imaging, MIPI video output, RS422 control, ≤3 W steady-state power and ≤80 g module weight.
Spectra L06NT is a high-accuracy infrared module for general IP networks.
SPECTRA L06C is an ultra-compact uncooled LWIR module with a 640×512/12 μm VOx detector, ≤23 g weight, CVBS/USB-UVC/BT.656 video, dual-range thermometry and 4.6–75 mm athermal lens options.
See the module and related imaging technology in real field footage.
Outdoor footage from a 640×512 thermal camera fitted with a 35 mm lens, focused on image clarity, field of view, and target presentation.
Watch Video
Multiple 640-channel thermal views are stitched into a 270-degree panorama for wide-area observation and continuous scene awareness.
Watch Video
Security Monitoring
Explore border & perimeter security applications
Machine Vision
Explore AI & smart device integration

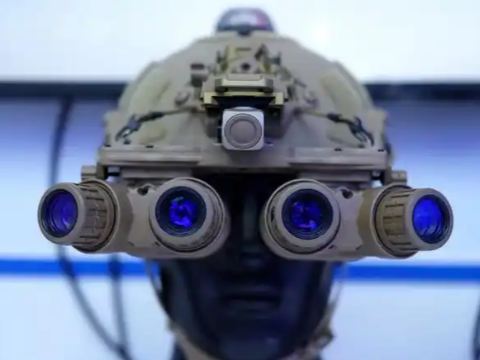

Wearable Devices
