Thermal Balancing of Injection Molds for Quality-Critical Parts

Every injection-molded part is a fossil of its mold’s temperature field. Warpage, sink marks, weld-line weakness, inconsistent gloss — most of the defects that plague precision molding are written by heat: where the mold ran hot, where it ran cold, and how unevenly the part cooled. The mold’s cooling circuits are supposed to control that field, but the designer’s intent and the steel’s reality are different things. You can measure coolant in and out, you can embed a few thermocouples, and you can infer the rest from defective parts — or you can simply look at the mold’s temperature map and see it directly.

This case study looks at how a precision molder put radiometric thermal imaging into its mold qualification and production monitoring workflow, and what seeing the temperature field changed.

Project Background

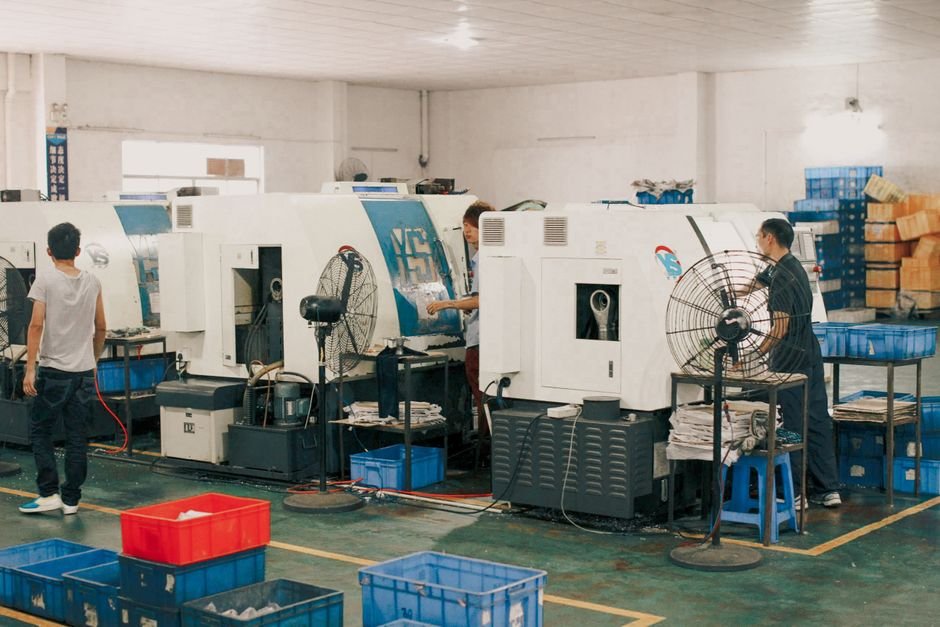

In 2024, a precision injection molding company in south China — molding connector housings and optical-adjacent parts for electronics customers, on presses from 80 to 650 tons — reviewed its quality economics. Two pain points dominated. First, new mold commissioning: each new multi-cavity mold went through weeks of trial shots, with warpage and dimension drift chased by adjusting process parameters that could only partly compensate for an unbalanced mold. Second, running quality: a family of thin-walled housings carried a persistent warpage reject rate that migrated between cavities over time, which the process team suspected was cooling-circuit degradation but could not localize. The existing instrumentation was coolant flow and return temperature per circuit — averages that hide everything interesting — plus sampled part measurements. The company approved a thermal imaging program: radiometric cameras at the presses during mold trials, capturing the actual temperature distribution of mold faces and ejected parts, cycle after cycle.

Pain Points of the Traditional Approach

• Coolant data hid the field. Inlet and outlet temperatures describe a circuit’s average behavior; they say nothing about hot spots, blocked channels or uneven cavity-to-cavity balance, which is where defects are born.
• Defects were measured on parts, hours downstream. Warpage showed up at the measurement station, after the parts had cooled and the batch had grown; the link back to mold temperature was inference, not observation.
• Trial-and-error commissioning burned weeks. Process tweaks can mask an unbalanced mold, not fix it — and every iteration cost machine time and resin while the real problem sat unobserved in the steel.
• Thermocouples measured where they were placed. A handful of embedded sensors gave numbers at points; the field between the points — the part that warps the product — stayed invisible.

The Thermal Imaging Solution

The program put radiometric thermal cameras at the trial presses in two positions. One camera frames the open mold at ejection: cycle after cycle, it records the temperature map of both mold halves, exposing hot and cold zones, dead cooling channels and cavity-to-cavity imbalance as direct images. A second camera frames the ejected parts in the moments before handling: the part’s own cooling pattern reveals sink and warpage drivers, and any cavity whose parts cool differently is identified immediately, by number.

Because the data is radiometric, every cycle is a measurement, not a photograph: the process team trends each cavity’s temperature signature over hours of production, catching cooling-circuit degradation as drift long before it reaches the reject bin.

What the Thermal Solution Changed

• New mold commissioning shrank from weeks to days. Cooling imbalance is now identified in the first trial session from the thermal maps and fixed in the steel — one mold-shop rework instead of weeks of process compensation; the company reports commissioning cycles shortened by roughly two thirds on recent molds.
• The migrating warpage problem was solved at the circuit. Thermal trending showed one cooling circuit’s zone drifting warm over weeks — a partially blocked channel. After cleaning, the reject rate on the thin-walled housing family fell from a persistent few percent to under half a percent.
• Cavity-level accountability became automatic. Every reject is now traceable to a cavity’s thermal signature; multi-cavity molds are managed as individual cavities, not as an average.
• Process windows widened. With the temperature field visible and balanced, the team re-centered process parameters with margin instead of fighting the mold — and first-pass yield on quality-critical parts rose accordingly.

Module Selection Notes

Mold and part temperature mapping asks for a radiometric LWIR core with good thermal sensitivity — small differences across a mold face are the whole story — a close-focus option for detailed mold features, and a digital interface the analysis software consumes every cycle. The SPECTRA L06A 640×512 LWIR module is the high-sensitivity core for this duty; where a single view must cover a large platen or a multi-press cell, the SPECTRA L12A 1280×1024 module fits that role. See the process monitoring application page for molding and thermal-process patterns.
